WB

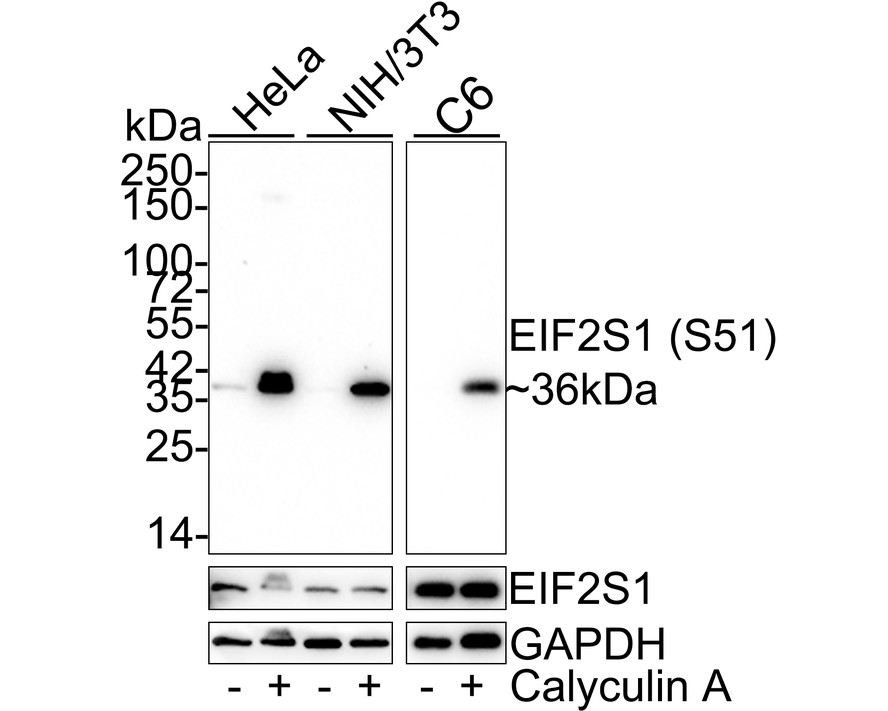

Western blot analysis of Phospho-EIF2S1 (S51) on different lysates with Rabbit anti-Phospho-EIF2S1 (S51) antibody at 1/2,000 dilution.
Lane 1: HeLa whole cell lysate (15 µg/Lane),
Lane 2: HeLa treated with 50nM Calyculin A for 3 hours whole cell lysate (15 µg/Lane),
Lane 3: NIH/3T3 whole cell lysate (15 µg/Lane),
Lane 4: NIH/3T3 treated with 100nM Calyculin A for 30 minutes whole cell lysate (15 µg/Lane),
Lane 5: C6 whole cell lysate (20 µg/Lane),
Lane 6: C6 treated with 100nM Calyculin A for 30 minutes whole cell lysate (20 µg/Lane),
Exposure time: Lane 1-4: 2 minutes; Lane 5-6: 23 seconds;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody at 1/2,000 dilution was used in 5% NFDM/TBST at 4℃ overnight. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1:50,000 dilution was used for 1 hour at room temperature.
WB

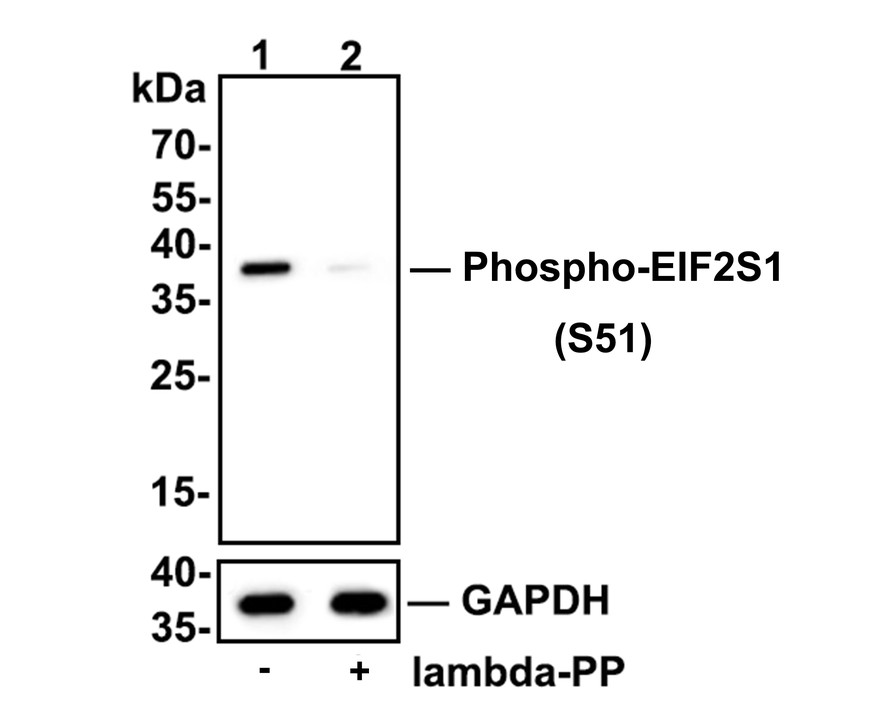

Western blot analysis of Phospho-EIF2S1 (S51) on mouse spleen tissue lysates.
Lane 1: mouse spleen tissue, whole tissue lysate, 20ug/lane.
Lane 2: mouse spleen tissue treated with 2.8ug/ul lambda-PP for 30 minutes, whole tissue lysates, 20ug/lane.
All lanes :
Anti-Phospho-EIF2S1 (S51) antibody at 1/500 dilution. Anti-GAPDH antibody at 1/10,000 dilution. Goat Anti-Rabbit IgG H&L (HRP) at 1/200,000 dilution.
Blocking and diluting buffer: 5% BSA.
Exposure time: 3 minutes 43 seconds.
IHC
Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue with Rabbit anti-Phospho-EIF2S1 (S51) antibody at 1/200 dilution.
A: Untreated human breast carcinoma tissue,
B: λ-PPase treated human breast carcinoma tissue,
C: Negative control.
The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody at 1/200 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
FC

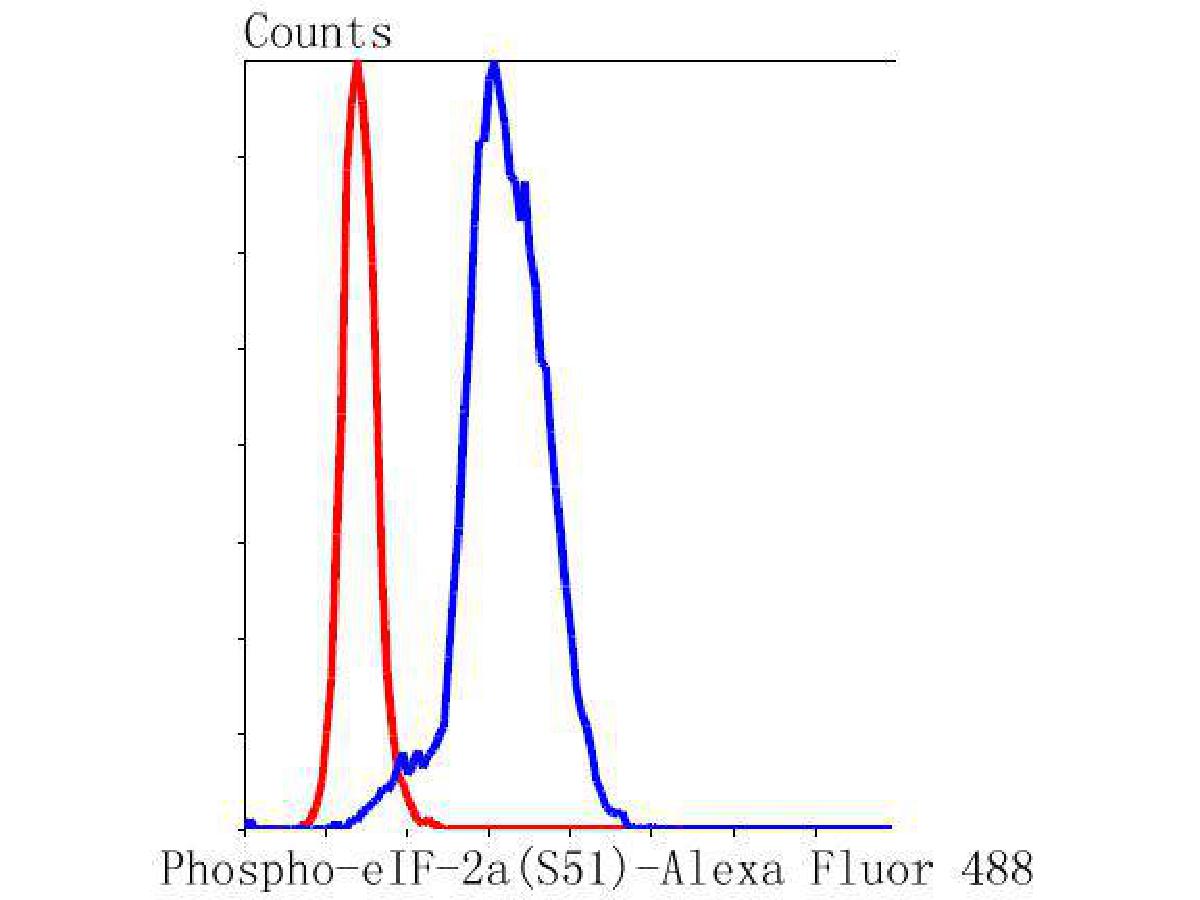

Flow cytometric analysis of Phospho-EIF2S1 (S51) was done on Hela cells. The cells were fixed, permeabilized and stained with the primary antibody (1/50) (blue). After incubation of the primary antibody at room temperature for an hour, the cells were stained with a Alexa Fluor 488-conjugated Goat anti-Rabbit IgG Secondary antibody at 1/1000 dilution for 30 minutes.Unlabelled sample was used as a control (cells without incubation with primary antibody; red).
