Name: OM-LS-80MB Large-Capacity Low-Speed Refrigerated Centrifuge
Rating: 5 (1 reviews)

OM-LS-80MB Large-Capacity Low-Speed Refrigerated Centrifuge

Catalog Number：OM-LS-80MB

Collection

Catalog Number: OM-LS-80MB

Instrument Features

Directly driven by a high-power AC variable-frequency motor, it features high precision, low noise, and a long service life.
Equipped with an imported high-efficiency fluorine-free refrigeration system, it achieves precise temperature control and causes no environmental pollution.
Controlled by a microcomputer, it is fitted with a large color screen. Programs can be edited and stored, and rotational speed, centrifugal force, and time can be displayed simultaneously.
It comes with 10 types of acceleration/deceleration curves and 30 types of customizable, storable free programs, which can meet different experimental needs.
Three-level damping shock absorption ensures optimal centrifugation effect. It is equipped with an electronic door lock, as well as functions for over-speed protection, over-temperature protection, and automatic fault diagnosis. Multiple protection measures guarantee the safety of both operators and the equipment.
The rotor body is made of LC4 aluminum (complying with national aviation standards). It is processed and formed after forging and Class A deep flaw detection, and has passed both static balance testing and dynamic balance testing to ensure the safety and reliability of the rotor body. With three-level shock absorption, it achieves optimal centrifugation effect: it can separate 16,500ml of whole blood in bags at one time, and 16,000ml of samples at one time.

Main Unit Parameters

Maximum Rotation Speed	8000 r/min
Maximum Centrifugal Force	14900xg
Maximum Capacity	8×2000ml
Rotation Speed Accuracy	±20r/min
Timing Range	0～99min59s
Overall Noise Level	＜60dB
Temperature Control Range	-20℃～+40℃
Temperature Control Precision	±1℃
Power Supply	AC380V 50Hz 15A
Weight	600kg(Excluding the rotor)
Overall Dimension	940×890×1000mm(L×W×H)

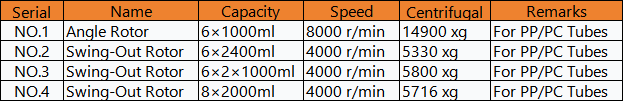

Compatible Rotors

Note: The product is for research use only,not for use in diagnostic or therapeutic procedures.
